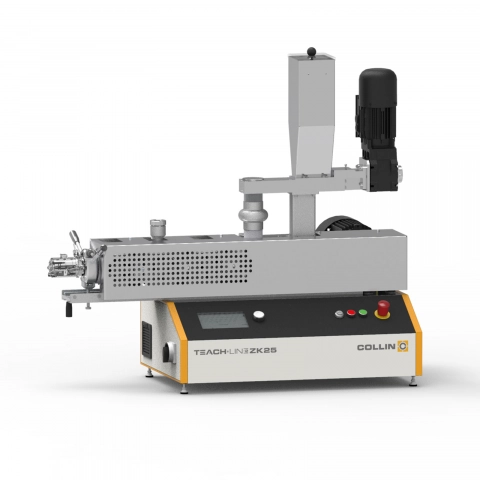

Teach Line Compounder – laboratory, tests, trainingsRetrofittable from co-rotating to counter-rotating operation

TEACH•LINE

All COLLIN Teach Line Compounders are available and retrofittable for co-rotating or counter-rotating operation. The table-top compounder consists of a processing part with drive, mounted on the electrical cabinet.

Compounders are suitable for the continuous melting, mixing, homogenizing, alloying and discharging of plastic masses.

Advantages

  • Compact table-top machine
  • Less material required
  • Available and retrofittable for co or counter-rotating operation
  • Easy maintenance

Materials

  • Polymers
  • Thermoplasts
  • Elastomers

Applications

  • Mixing and dispersing of pigments
  • Admixing of fillers and other additives into polymers
  • Admixing of fibre strands
  • Mixing of polymers or pastes
  • Degassing of volatile components
  • Continuous reaction extrusion

Control

  • Microprocessor control with HMI, function keys and data wheel
  • Cylinder and heating for downstream equipment
  • Melt temperature and melt pressure indication
  • Screw speed
  • Display of the motor current supply

Customers

  • Universities and institutes
  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Pharmaceutical companies
  • Companies in the medical sector

Teach Line Compounder – Technical data

Parameters / CompounderZK 12ZK 16ZK 25
Screw Ø 12 mm16 mm25 mm
Screw torque 2 x 6,3 Nm2 x 17 Nm2 x 56 Nm
Screw speed 20-220 rpm20-500 rpm2-210 rpm

leer

Downstream equipment

Water bath
Pelletizer
Small blown or flat film line

Standards

Machine Directive 2006/42/EG
ISO 12100
EN 13849-1 and -2
EN 1114

Service

Our Service & after sales team is looking forward to supporting our worldwide customers.
Contact >>>

All COLLIN compounders at a glance:

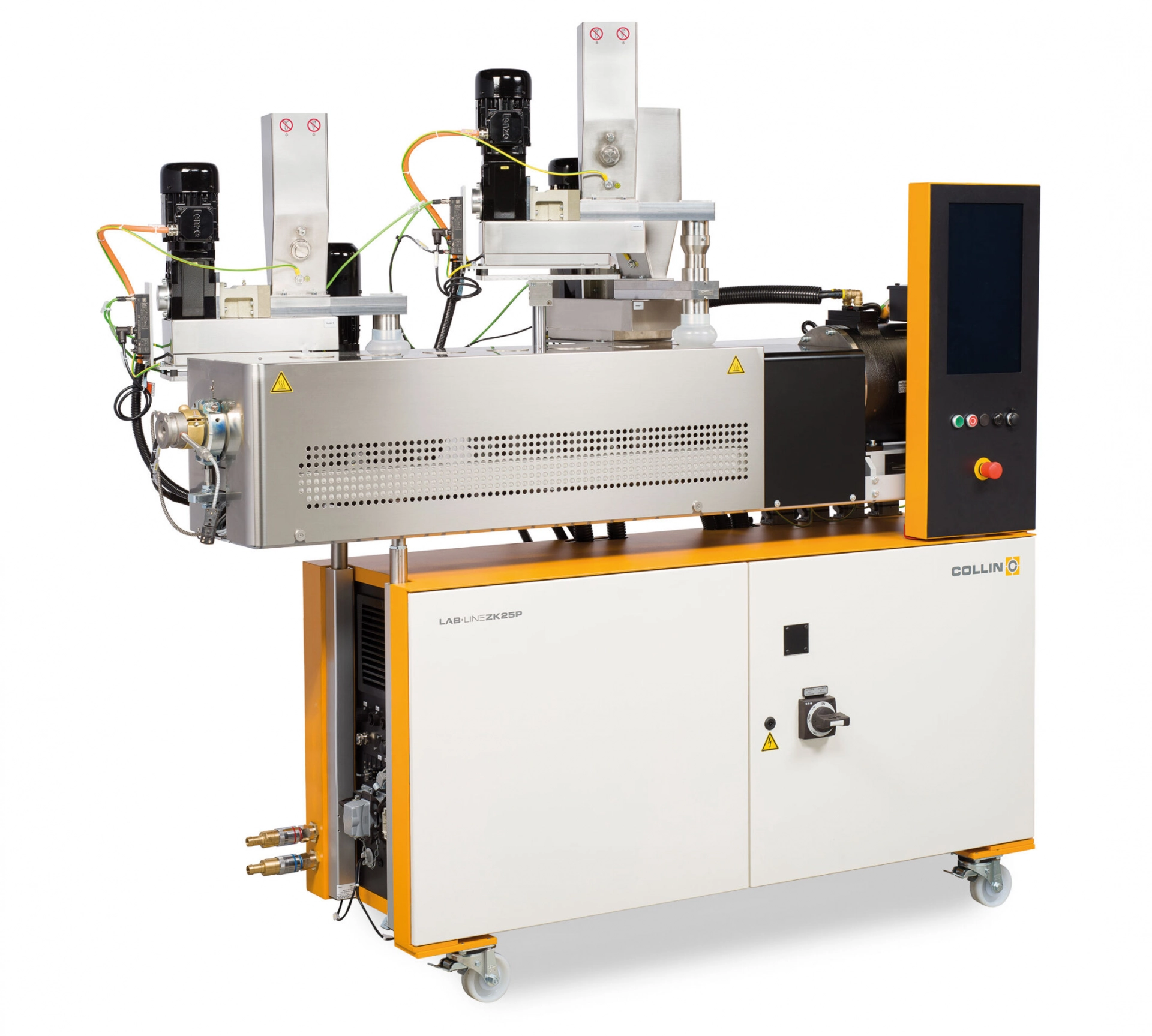

Compounder P Professional

For pilot series & production.

<<<

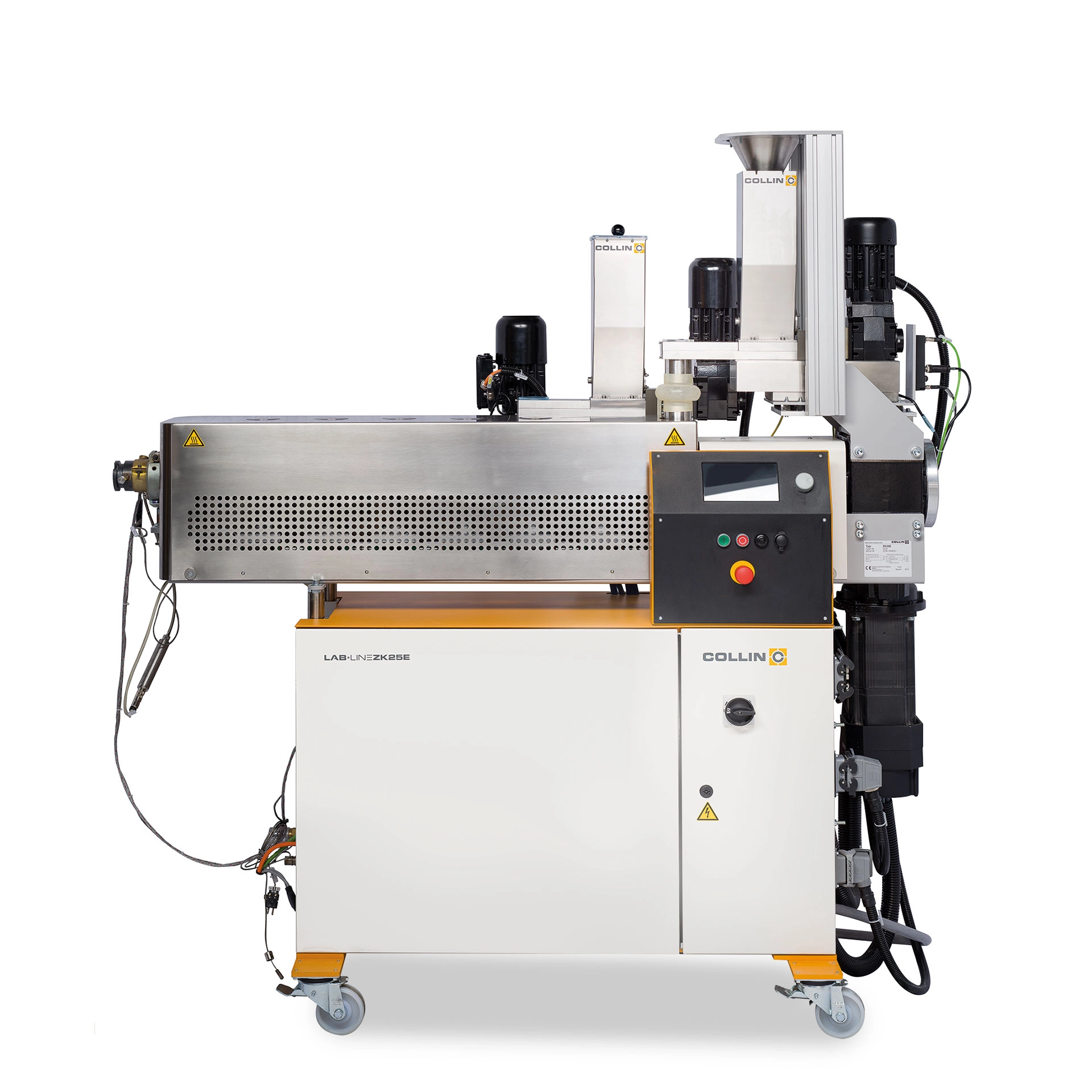

Compounder E Entrance

For tests, research & development.

<<<

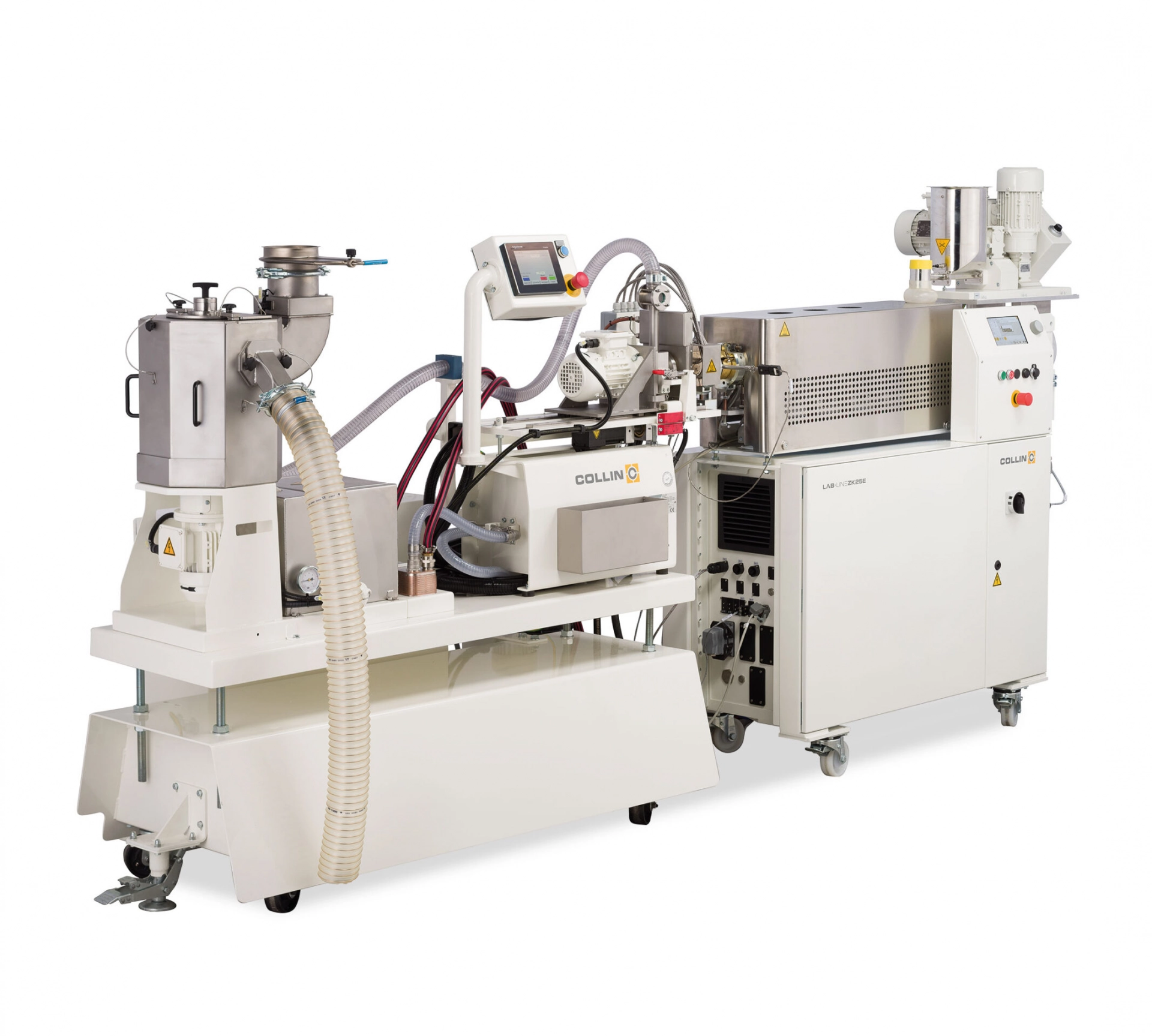

Medical Line Compounder

For companies in the medical & pharmaceutical sector.

<<<
