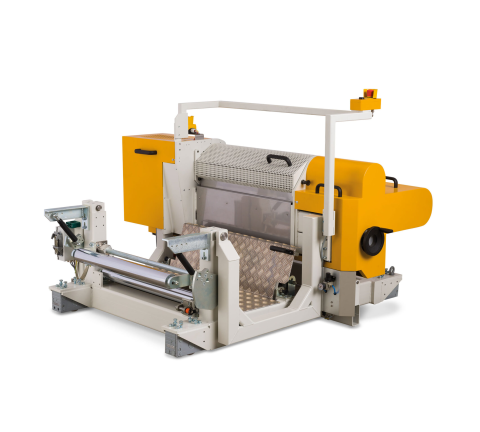

Pilot Line Flat Film Lines - Perfect for UpscalingDifferent designs of roll groups.


Flat film lines with two rolls are mainly used for the production of films. Flat film lines in the pilot sector are custom-made. Depending on the customer requirement, different designs of roll groups can be offered.


  • Take-off speed standard up to 100 m/min, as option up to 200 m/min
  • Roll position adjustable in x and z direction to one another
  • Easy accessibility
  • Vertical as smoothing calender (horizontal die position)
  • Horizontal as chill roll (vertical die position)
  • Rolls optimized for liquid tempering
  • Web speed steplessly adjustable: 1 – 50 m/min
  • Diverse accessories, for example camera inspection etc.
  • Easy traversing
  • Flexible and modular design
  • Operable by one person
  • High speeds
  • Different material layers
  • High degree of automation
  • Upscaling to production lines


  • For smaller product batches resp. niche production
  • Sample production
  • Education

The control panel is mounted on the switch cabinet and includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.


  • Processing companies
  • Packaging companies
  • Sports goods manufacturers
  • Universities and institutes
  • Companies in the medical sector
Parameters / LinePilot Line Flat Film Line
Take-off speedstandard to 100 m/min, optional to 200 m/min
Roller width600, 800, 1000 mm
Working position rollseither standard horizontal or vertical on request


Hydraulic pressing of the smoothing roll (closing force)
Tempering devices (water/oil)
Control of a pre-take-off incl. a differential speed (∆m/min) of the pre-take-off
Web edge control/traverse
Tensile stress control
Edge cutting and edge strip winding
Film inspection, thickness measurement system, corona station
Winder (central, contact or gap)

Ask for more information!
