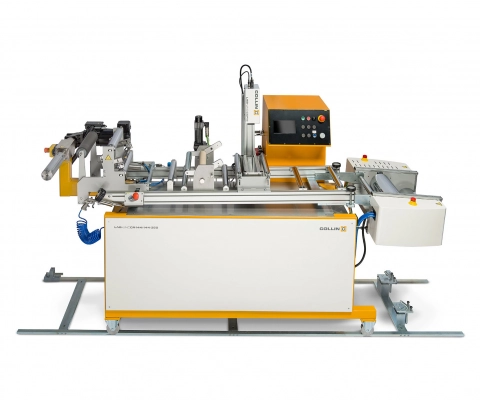

This basic unit includes two rolls in horizontal position, suitable for cast films. COLLIN designs the rolls according to the customer requirements such as for example speed, roll width, roll coating etc.
The roll group is horizontally arranged, suitable for a vertical die position. The roll group consists of a cast roll as well as a cooling roll. Both rolls are driven by one motor.
The control panel is mounted at the switch cabinet and includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.
|Parameters / Line||Flat film line with 2 rolls|
|Roll diameter||Standard: 144 or 250 mm,|
other diameters on request
|Roller width||200, 400, 600 mm|
|Working position roll||horizontal|
Tempering devices (water/oil)
Control of a pre-take-off incl. A difference speed (∆m/min) of the pre-take-off
Film guiding system with film edge control
Edge cutting and edge strip winding
Film inspection, thickness measuring system, corona station
Winder (central, contact or gap)
We are looking forward to supporting you!

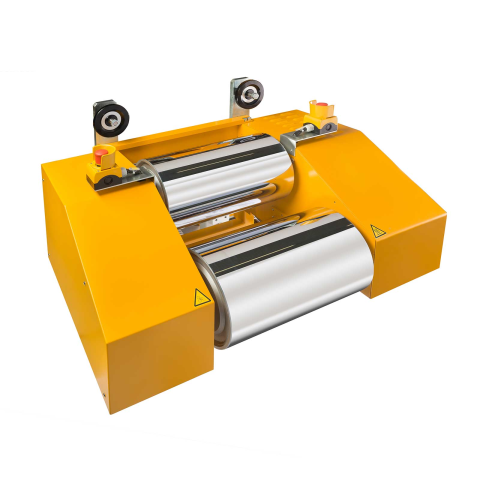

Smoothing calender & chill roll for horizontal resp. vertical application
