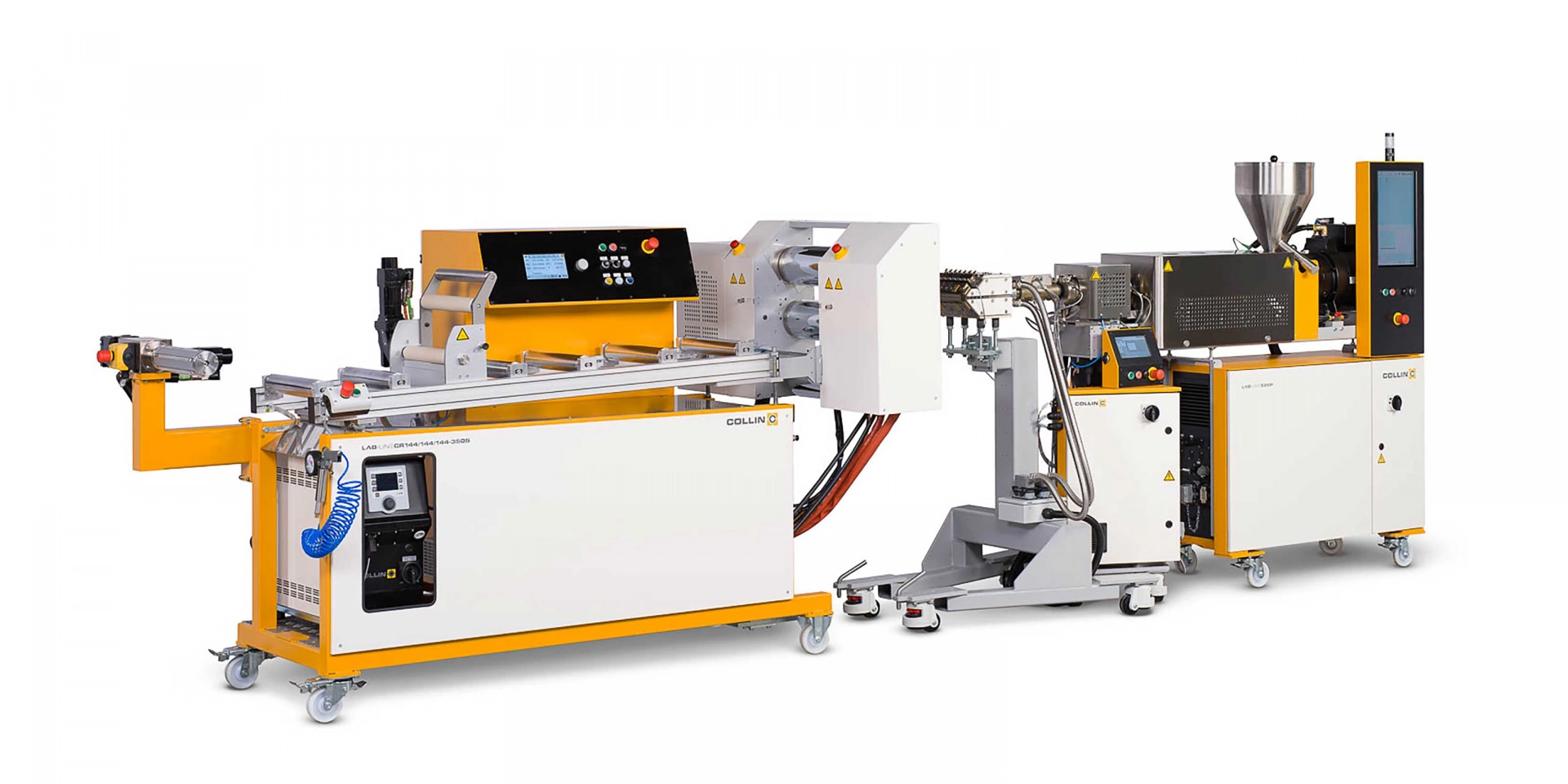

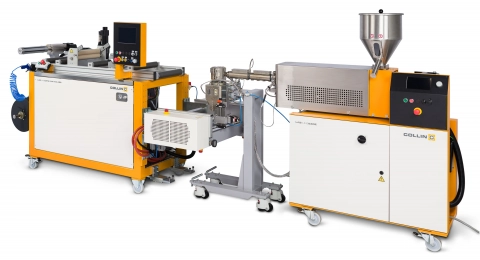

Flat Film Lines with 3 rolls – smoothing calender & chill rollSmoothing, embossing, laminating of films & sheets.


These COLLIN flat film lines combine smoothing calender and chill roll and are used in the production of thin-walled or thick-walled films.

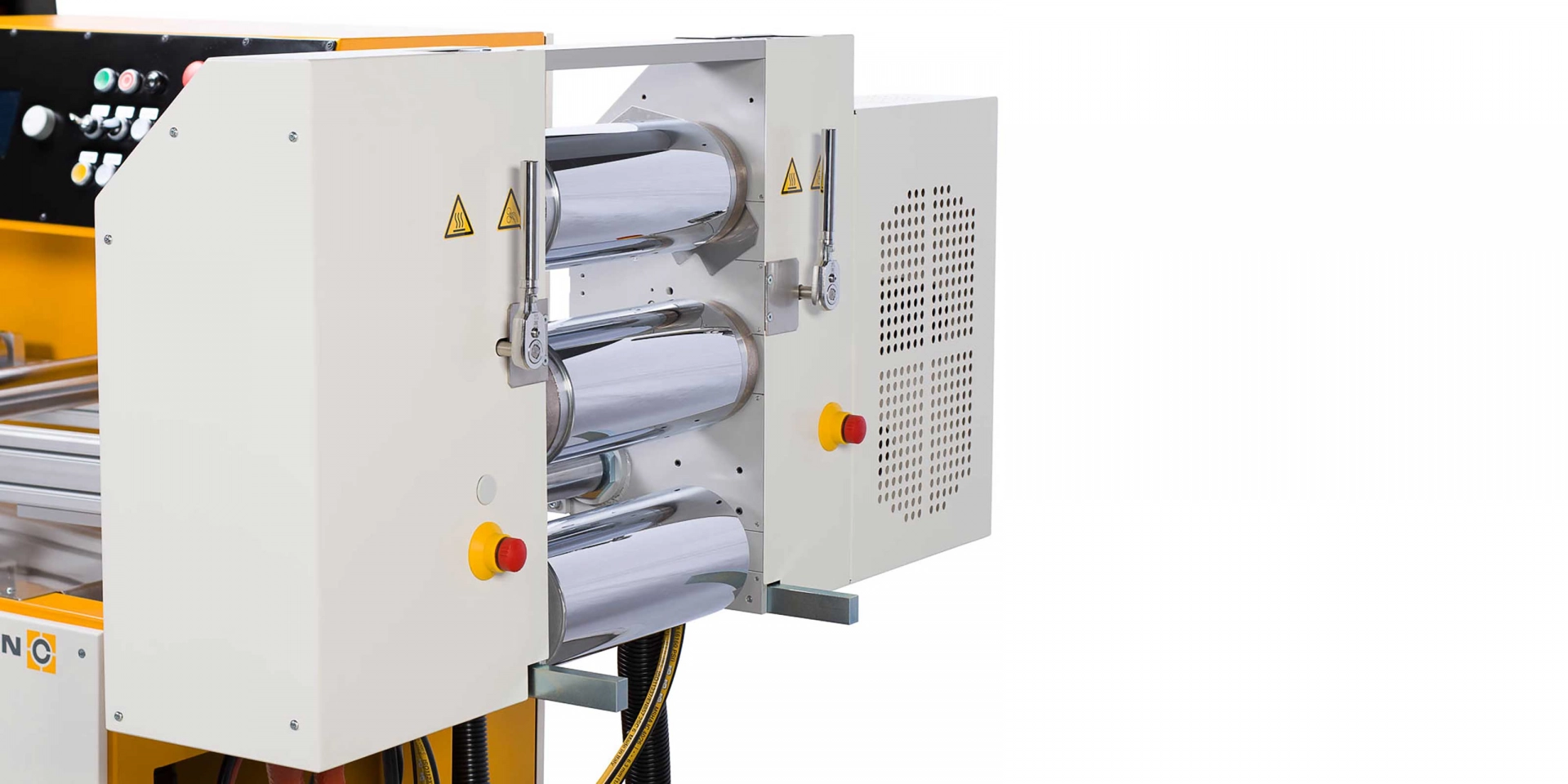

The 3-roll unit can be used for vertical or horizontal operation – the roll group can be swivelled by 90 degrees. The forces in the smoothing gap can hydraulically or pneumatically be generated. The smoothing roll is suitable for a wide selection of applications such as smoothing, embossing or laminating.

The roll unit is suitable for 2 working positions:

  • Vertical for the application as calender (horizontal die position)
  • Horizontal for the application as chill roll (vertical die position)
  • Rolls optimized for liquid tempering
  • Web speed steplessly controllable: 1 – 50 m/min
  • Diverse accessories such as for example camera inspection etc. are possible
  • Quick sample production
  • Easily traversable
  • Flexible and modular design
  • Operable by one person
  • High speeds are possible
  • Different material layers
  • High degree of automation
  • Upscaling to production lines


  • Smoothing, embossing, laminating of films or sheets
  • Quality control
  • Material development

The control panel is mounted at the switch cabinet and includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.


  • Compounding and refining companies
  • Processing companies
  • Packaging industry
  • Sports goods manufacturer
  • Universities and institutes
  • Companies in the medical sector
Parameters / LineFlat film line with 3 rolls
Web speed1-50 m/min, other speeds on request
Roller width200, 400, 600 mm
Working position rollshorizontal, vertical


Hydraulic contact pressure of the smoothing roll (10 kN closing force)
Tempering devices (water/oil)
Control of a pre-take-off incl. A difference speed (∆m/min) of the pre-take-off
Film guiding system with film edge control
Tension control
Edge cutting and edge strip winding
Film inspection, thickness measuring system, corona station
Winder (central, contact or gap)

Contact After Sales & Service Team >>>

Enquiry details

Call us or send an email

Please see our complete range of flat film lines:


Flat film line with 2 rolls

For cast films with different thickness


Pilot Line flat film line

For film production

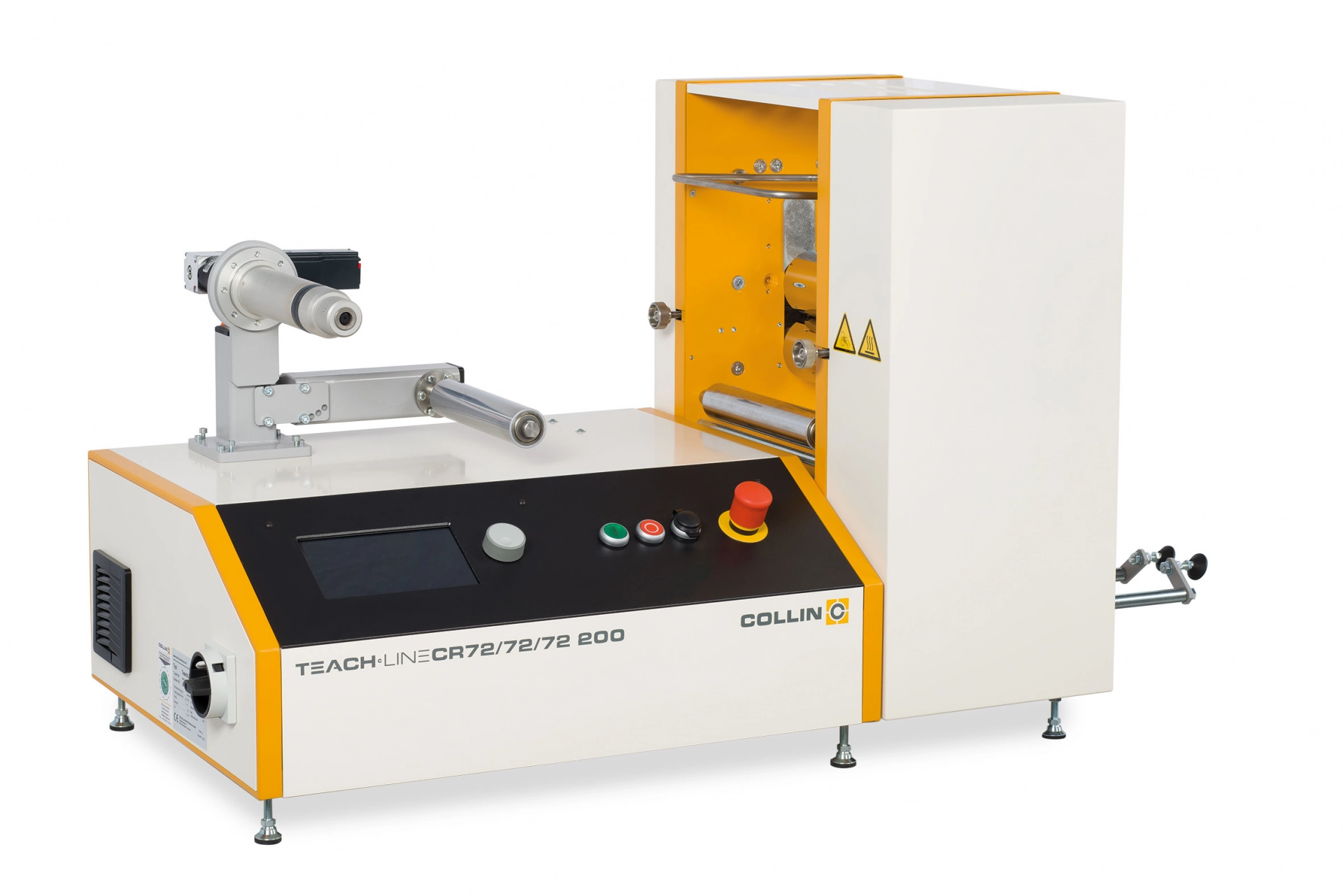

Teach Line flat film line
