High-Performance Presses S & SVEfficient, highly precise & energy saving.

LAB•LINE

The Platen Presses S and SV are high-performance versions of the COLLIN presses.

The S series for servo hydraulics convinces by its ergonomic, space-saving and modern design – the efficient servo hydraulics by its quiet operation, the highly precise pressure control and a low energy consumption. Moreover, due to this concept, cooling water is no longer required. The quiet hydraulic aggregate has a servomotor and a double gear pump, the pressure control is done with a servo controller via the speed.

Presses Type SV have a vacuum chamber and are used for example in research or the aerospace industry.

Advantages

  • High pressure accuracy of +/- 0.5 bar
  • High temperature accuracy over the platen surface
  • Highly precise temperature and pressure ramp control
  • Reduced energy consumption of the motor
  • Operator friendly by touch screen control

Materials

  • All polymeric materials
  • Ceramic masses
  • Diverse laminates
  • Resins with binder systems
  • Fibre composites

Temperature range: from 20 to 300 °C, optional up to 450 °C

Press inserts

Test specimen production, laminating, deep-drawing, sintering, clean-room technology

Control

The COLLIN presses are equipped with a 10“touch screen (CMI 10) – this guarantees a highly accurate pressure and temperature control as well as a clean display of parameters and data.

Customers

  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector

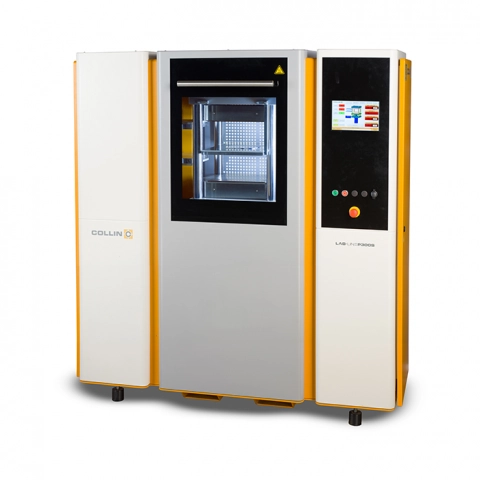

High Performance Press 300 S

Features(optional)

Roller conveyors, press platens, frame and tools, controlled tool temperature, decalcification systems, closed cooling systems (chillers), increased working area, multi daylight press
Cooling ramp according to ASTM D4703-2016 etc.

Vacuum Press SV from COLLIN

Press S, SV – Technical data:

Standard press modelP 200 SP 300 SP 400 S / SV**P 500 S / SV**
Usable pressing area196 x 196 mm296 x 296 mm396 x 396 mm496 x 496 mm
Pressing force*125 kN300 kN500 kN785 kN
Dimensions L x W x H1400 x 800 x 1800 mm1655 x 800 x 1800 mm2000 x 9450 x 2050 mm2425 x 1050 x 2350 mm

*Further pressing forces on request.
**Type SV: achievable final vacuum 10 mbar.

leer

Press S & SV – ask for more information!

Service & After Sales

Our team is looking forward to supporting you!

Safety

All press types fulfil the safety requirements of Standard EN 289:2014 as well as Machine Directive 2006/42/EG.

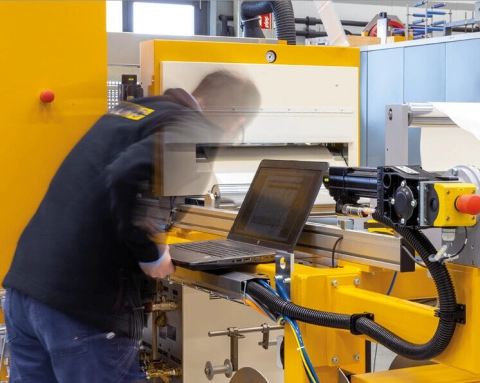

Service and MaintenanceWorldwide support – maintenance work, repairs as well as calibration

Our service team comprehensively supports our worldwide customers. Besides regular maintenance works, we support you during repair works as well as during the calibration of your COLLIN line. Moreover, our team takes care of the integration of COLLIN machines into existing lines resp. the adaptation of existing lines to new challenges. In nearly all cases, the modular conception of all COLLIN lines is advantageous for this task.
