Presses E, E air & P EntranceEntrance presses - economic & flexible.

LAB•LINE

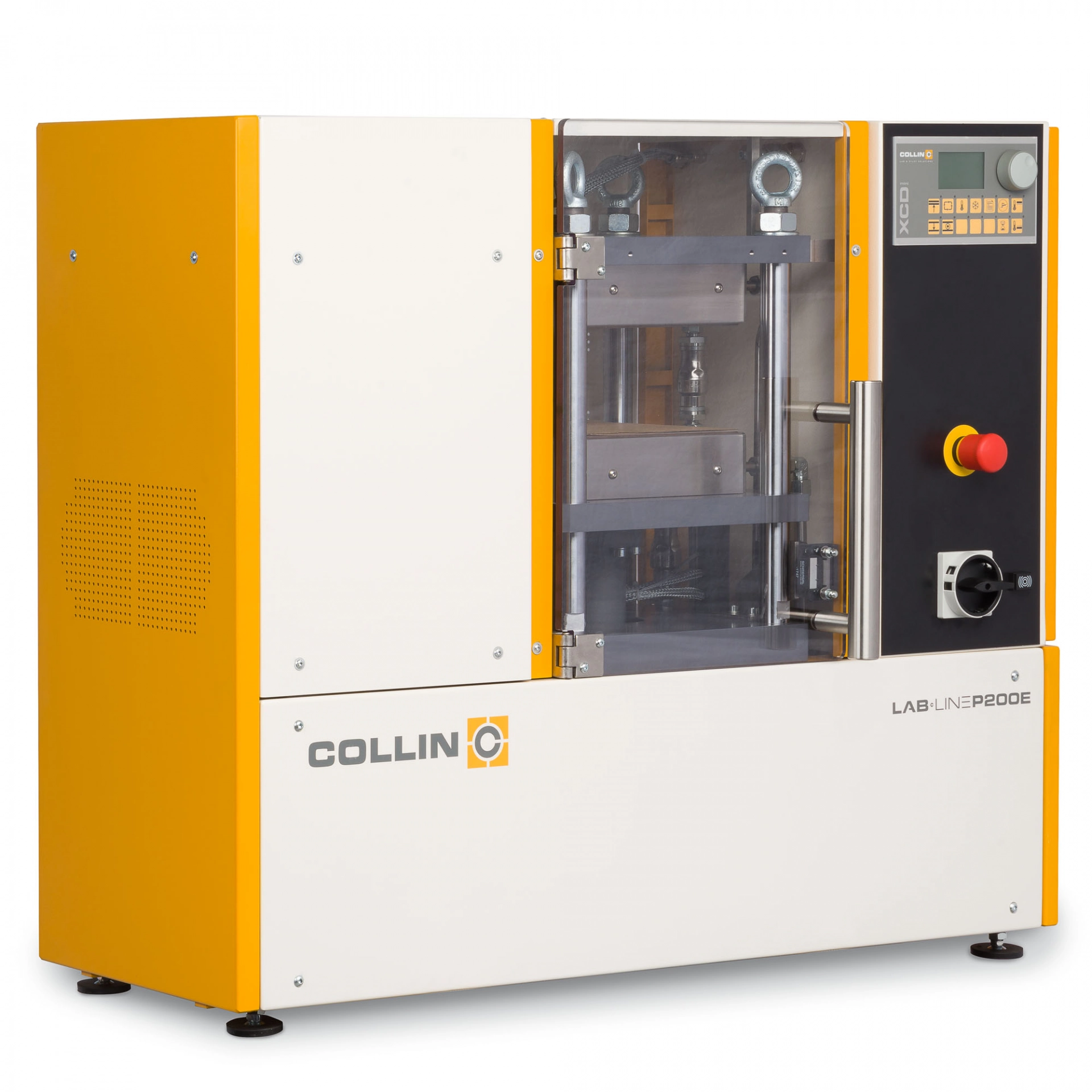

The Type E Series Platen Press is the entrance version among the COLLIN presses.

As 4-column design with fixed upper counter plate and moveable lower plate, the COLLIN presses cover an enormous pressure range. Due to the large distance between the columns, optimal handling possibilities in the interior of the press are created.

Advantages

  • Economically designed system.
  • Covers a wide range of pressures.
  • Optimal handling in the interior of the press due to the design. Selection between manual control and automatic operation.

Materials

  • Polymeric materials
  • Ceramic masses etc.

Temperature range: from 20°C to 300°C.

Control

The control includes a 7“touch display (CMI 7) with micro controller. The selection between manual control and automatic operation is advantageous.

Customers

  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector

leer

Features

Press plates
Frames
Tools
Closed cooling systems (Chillers)

Safety

All press types fulfil the safety requirements of Standard EN 289:2014 as well as Machine Directive 2006/42/EG.

Press E and P – Technical dataStage hydraulics with double-acting hydraulic cylinder

Parameters / PressP 200 E P 300 E / PP 400 E / P
Usable area196 x 196 mm296 x 296 mm396 x 396 mm
Pressing force120 kN500 kN600 kN
Dimensions (L x W x H)975 x 350 x 835 mm1300 x 500 x 980 mm1676 x 642 x 1720 mm
Pressure build-uphydraulichydraulichydraulic

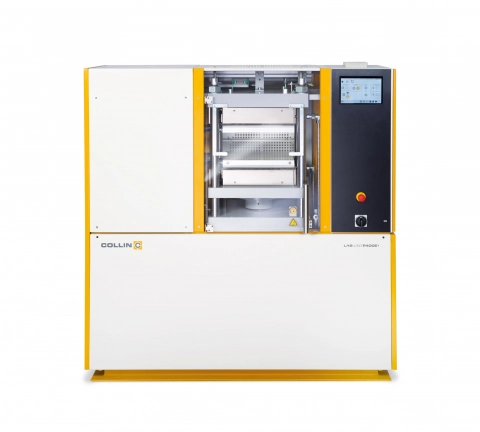

DesignTable-top designTable-top designStand-alone design

Presses P: More accurate pressure range & more program steps

With the Presses E+, the cooling ramp, specified in the Test Standard ASTM D4703-2016, can be realised.

  • Additionally, a more accurate pressure range is possible,
  • Furthermore, there are 100 program steps and
  • A graphical display of the processes.

Press E air – Technical dataPneumatic press for lowest pressure and high accuracy

Parameters / PressP 200 E airP 300 E air
Usable area196 x 196 mm296 x 296 mm
Pressing force7,4 kN*12 kN*
Dimensions (L x W x H)975 x 350 x 817 mm1300 x 500 x 980 mm
Pressure  build-uppneumaticpneumatic
DesignTable-top designTable-top design

* at an air pressure of 6 bar in the customer’s system (0.1 bar accuracy)
