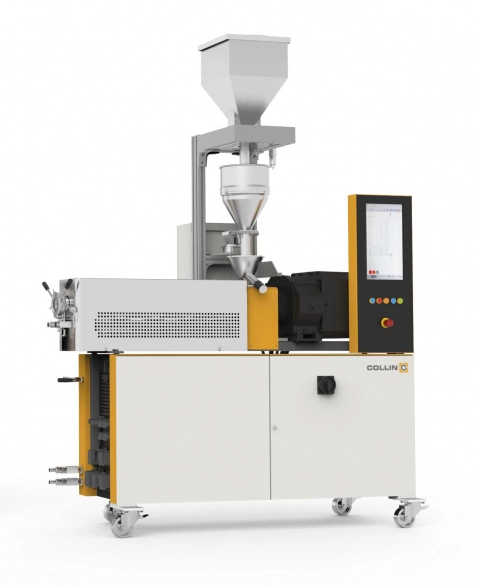

High-Performance Extruder T TorqueEfficient, flexible & innovative.

PILOT•LINE

The Extruder T can be described as high-performance extruder or high-speed machine. Because this series has all advantages of the Extruder P Professional and provides an essentially higher output due to the increased speed while simultaneously achieving a high drive torque. Especially the development of the screw geometry and the feed for the high-speed machine requires enormous technical competence.

The T series Extruder is driven by a torque motor.

Advantages

  • Drive concept torque – up to 800 U/min
  • Variety of application and extension possibilities
  • Good handling due to compact design
  • Optimal operation via touch screen
  • Ideal for multi-layer lines, since different downstream equipment can individually be adapted.

Materials

  • Polyolefins
  • Technical polymers
  • Highly filled plastics
  • Fluoropolymers
  • High-temperature plastics
  • Biopolymers
  • Upgradable for nearly any material

Max. temperature: 500°C

Application: production

Control
via touch screen.

  • Display of all functions with set and actual values
  • Display of the values tabularly, graphically or as bar diagram
  • Large display of important process values
  • Control button for all machine functions
  • Possibility of recipe management
  • Error and fault messages
  • language selection
  • Ethernet connection
  • Easy combination of the machines via Feldbus interface
  • Possibility of the connection to the superior SCADA system (for FDA lines)

Customers

  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector

Features(as option)

  • Hopper heating
  • Automatic two-chamber hopper
  • Grooved feed zone
  • Extruder designed up to 500°C
  • Heated clamping flange
  • Different screw geometries, incl. barrier screws
  • Different materials for screw and cylinder
  • Electrical height-adjustment
  • Possibility to use dosing devices
  • Display of all possible options such as e. g. dosing units or filling level control
  • UL/CSA design
  • Several pressure and temperature sensors for the cylinder
  • Starter kit with die plate and five screen packages
  • Heating zone package for downstream equipment with four heating zones

Extruder T – Technical data

Parameters / ExtruderE 25 TE 30 T
Nominal diameter cylinder25 mm30 mm
Dimensions
L x W x H
1840 x 680 x 1650 mm1960 x 680 x 1650 mm

leer

Safety

Securing and monitoring of all function parameters according to EN 1114-1. All extruder zones are temperature-controlled – switch-off pressure 560 bar (PLc).
