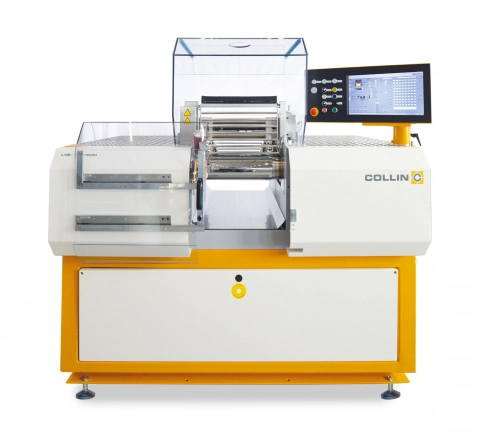

Roll Mills M Measuring – production control, R&DExact, comprehensive & high reproducibility.


COLLIN Roll Mills M Measuring are essential for all processes in development and production control.

The accuracy of the setting parameters and the large number of measuring devices allow a reproducible determination of characteristic material data, whereby the creation of optimal setting parameters for all production machines is supported.

If desired, gap measurements and controls as well as a design of a high-temperature version of up to 450°C are possible.


  • Reproducibility
  • Large number of integrated measuring devices
  • Many options


  • Thermoplastics
  • Elastomers
  • Masterbatch
  • PVC

High-temperature version: up to 450°C


  • Production
  • Laboratory – test, trials
  • Small batch test
  • Quality control


The control runs via a 7″ touch display (CMI 7) with operating buttons as well as data wheel and allows manual and automatic operation of the roll mill.

  • Display of all functions with set and actual values
  • Value display tabularly, graphically or as bar diagram
  • Large display of important process values
  • Operating buttons for all machine functions
  • Possibility of recipe management
  • Error and fault messages
  • Language selection
  • Ethernet connection, as option


  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector

Roll Mill M & MR – Technical data

Parameters / Roll MillsW 150 MW 150 MR
Roll diameter x roller width150 x 400 mm150 x 400 mm
Max. torque per roll668 Nm1.435 Nm
Gap fine adjustment0.08-2.99 mm0.08-9.99 mm



Colour measurement, layer thickness measurement
High accuracy when measuring the gap width
Roll bearing pressure measurement
Melt temperature measurement via IR sensor
Torque measurement on each roll
Knead level measurement, adhesive force measurement
Sealing jaws adjustment for samples with low volume
Complete enclosure of the working space
Automation: deflection device of the film
Automation: take-off roll


Swivelling safety grids
Emergency stop
Knee emergency stop switch plate
Emergency stop button in the control panel
