Calenders – laboratory calenders for different layer thicknessesCalendering, smoothing, extrusion coating, embossing, laminating.


Laboratory calenders are used for the development of films, film compound systems and sheets with different layer thicknesses made of different polymer materials such as PVC, polyolefins, PU etc. The COLLIN calenders are available with roll diameters of 144 mm, 250 mm or larger. Custom-made machines, adapted to the process conditions are standard at COLLIN.

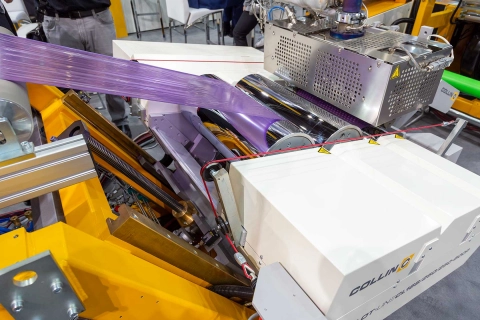

Two and three-roll calender for high-precision films
For the production of films with extremely low wall thickness tolerances. The gaps between the rolls can be measured or controlled with lowest tolerances and high measuring accuracy.

Laminating calender
COLLIN calenders are used for refining films and sheets by laminating or contact laminating. Complete lines can be designed for: take-off – pre-treatment – pre-heating – calendering – refining – laminating – cooling – cutting – winding

Refining calender
The smoothing calender is used for smoothing thick-walled films or sheets or for embossing, coating and laminating. A swivelling and height-adjustable group of three rolls allows the adaptation to all common processing technologies. Heating is realised either by hot water or oil. Moreover, there is an electric roll heating of up to 450°C.

Roll diameter

  • From 144 mm to 250 mm
  • On request, larger diameters are available


  • Different operating modes possible
  • Easy retrofit to another operating mode
  • Quick roll change
  • 2 speed levels
  • Highest rotation accuracy
  • Low wall thickness tolerances
  • 2 or 3 rolls – swivelling and height adjustable
  • High precision


  • PVC
  • Polyolefins
  • PU
  • Polymeric carbonate
  • Numerous technical polymers


  • Laboratory operation, test series, research & development
  • Production of special films – Upscaling
  • Calendering, laminating, smoothing, refining, extrusion coating

The control includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.


  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes


Electric gap adjustment
Automatic gap control
Adjustable line pressure
Standard angle available, on request adjustable

COLLIN Calanders

After Sales & ServiceWe are looking forward to supporting you!

Click here for COLLIN Medical Line Calenders as well as Pilot Line Calendering Lines:

Ask for an offer

Pilot Line Calender

For refining films and surfaces

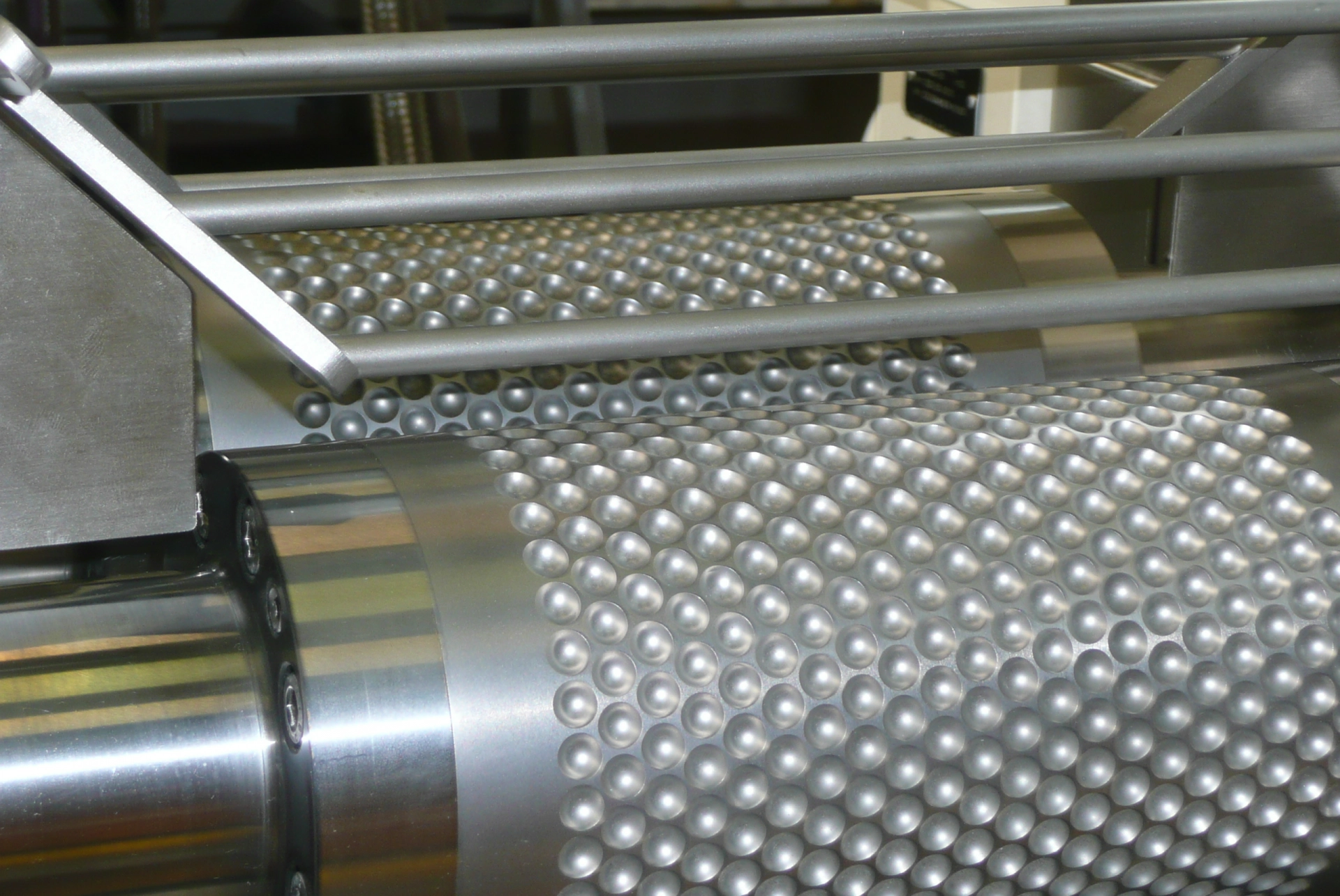

Medical Line Calender

For pharmaceutical prototypes & tablets


COLLIN Medical Line Calender
