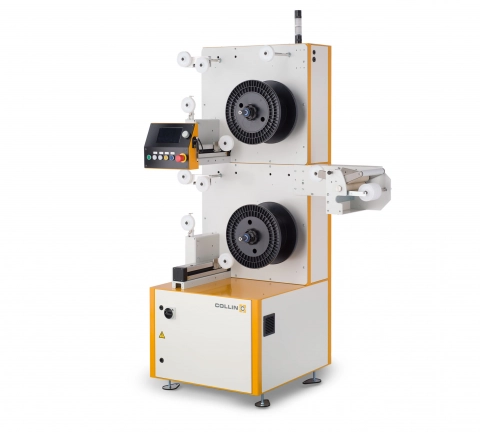

COLLIN filament winders are especially suitable for strands or small hoses with diameters of 0.5 up to 4 mm. The winder has a modular design and is thus freely configurable.
The strand runs via a filament guidance, then via a dancer system, is traversed and then wound. The winding unit has one or two winding stations – two can be operated sequentially or parallelly. In case of further winding stations, several filament winders are coupled.
Type of winding
Depending on the design, with the winder either layer to layer winding or cross winding is possible.
As control, a 7“touch screen (CMI 7) is used, which can clearly and easily be operated.
laboratory operation, test series, research & development, production
|Max. coil diameter||355 mm|
|Max. coil width||200 mm|
|Diameter strand||0,5-4 mm|
|Web speed||1-100 m/min|
(100 m/min at a coil diameter of more than 200 mm)
